OpenSat Mission Lab v1.7

Release Verification Report

PASS

India Flood Monitoring Demonstrator

Requirements
57 / 57 passed

Benchmarks
10 / 10 passed

Release
1.7.0 temporal Earth-observation and optical/SAR fusion release

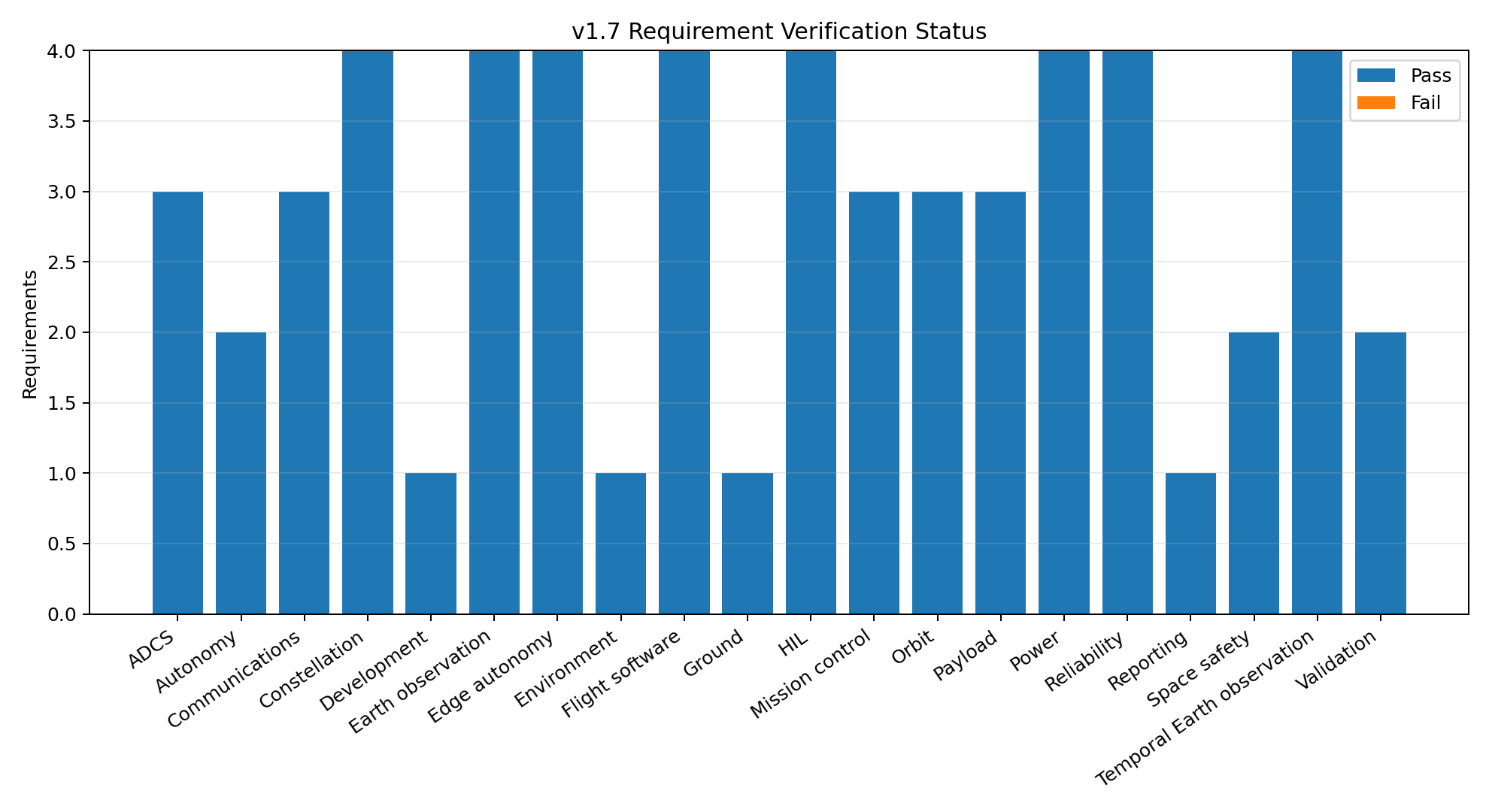

Requirement status

ID	Subsystem	Status	Result	Evidence
ORB-001	Orbit	PASS	5041 state samples	state_history.csv
ORB-002	Orbit	PASS	model=j2; difference=3428.219 km	dynamics_model_comparison.csv
ORB-003	Orbit	PASS	latitude/longitude bounds satisfied	ground_track.png
ENV-001	Environment	PASS	106 eclipse windows	sunlight_timeline.png
GND-001	Ground	PASS	18 contacts	contact_windows.csv
PAY-001	Payload	PASS	27 access windows	target_access_windows.csv
PAY-002	Payload	PASS	15 attempts; 84.00 MB generated	imaging_events.csv
PAY-003	Payload	PASS	peak=52.20 MB	payload_storage.csv
EPS-001	Power	PASS	generated=1695.81 Wh	power_history.csv
EPS-002	Power	PASS	SOC=24.64% to 100.00%	battery_state_of_charge.png
EPS-003	Power	PASS	1 entries	safe_mode_windows.csv
EPS-004	Power	PASS	1 power-blocked images	imaging_events.csv
COM-001	Communications	PASS	C/N0 histories finite	link_budget_history.csv
COM-002	Communications	PASS	maximum=256.0 kbps	adaptive_data_rate.png
COM-003	Communications	PASS	downlinked=38.26 MB	payload_data_transfer.png
ADCS-001	ADCS	PASS	quaternion norms within 1e-9	attitude_history.csv
ADCS-002	ADCS	PASS	detumble=30.00 min; saturation=0	reaction_wheel_momentum.png
ADCS-003	ADCS	PASS	5025/5026 compliant	pointing_violation_windows.csv
FSW-001	Flight software	PASS	58 transitions	flight_software_history.csv
FSW-002	Flight software	PASS	accepted=3; rejected=2	command_log.csv
FSW-003	Flight software	PASS	1 resets	watchdog_resets.csv
FSW-004	Flight software	PASS	2011 packets; 99.70% delivery	telemetry_packets.csv
MOC-001	Mission control	PASS	11 alarms	alarm_log.csv
MOC-002	Mission control	PASS	18 passes; 152 operations	operations_schedule.csv
MOC-003	Mission control	PASS	mission_control_dashboard.html: present	mission_control_dashboard.html
REL-001	Reliability	PASS	FMEA=12; risks=12	fmea.csv
REL-002	Reliability	PASS	200 trials; success=52.00%	monte_carlo_summary.csv
REL-003	Reliability	PASS	9 anomaly windows	anomaly_events.csv
REL-004	Reliability	PASS	reliability_dashboard.html: present	reliability_dashboard.html
VAL-001	Validation	PASS	max position=0.177651 km; max velocity=0.000193441 km/s	independent_orbit_comparison.csv
VAL-002	Validation	PASS	GMAT, Orekit, JSON request, and CSV template present	external_validation_request.json
HIL-001	HIL	PASS	50/50 packets; invalid=0	hil_loopback_results.csv
HIL-002	HIL	PASS	hil_telemetry_stream.ndjson: present	hil_telemetry_stream.ndjson
HIL-003	HIL	PASS	4/4 acknowledgements	hardware_command_results.csv
HIL-004	HIL	PASS	serial bridge and hardware examples present	hardware/README.md
CON-001	Constellation	PASS	4 satellites; 5041 samples each	constellation_state_history.csv
CON-002	Constellation	PASS	scheduled=28; decisions=59	coordinated_imaging_schedule.csv
CON-003	Constellation	PASS	ISL windows=848; network=46.12%	inter_satellite_link_windows.csv
CON-004	Constellation	PASS	shared passes=70	shared_ground_pass_schedule.csv
SSA-001	Space safety	PASS	events=6; minimum miss=0.733 km	conjunction_events.csv
SSA-002	Space safety	PASS	recommendations=2	avoidance_maneuver_recommendations.csv
OPS-001	Autonomy	PASS	tasks=30; utility=9244.91	optimized_tasking_schedule.csv
OPS-002	Autonomy	PASS	events=2; tasks=29	replanned_tasking_schedule.csv
AUT-001	Edge autonomy	PASS	assessments=17; digest=9510fa4ece51	autonomy_scene_assessments.csv
AUT-002	Edge autonomy	PASS	triggers=11; priority=11	autonomy_scene_assessments.csv
AUT-003	Edge autonomy	PASS	targets=5; tasks=16	autonomous_tasking_schedule.csv
AUT-004	Edge autonomy	PASS	finite assessments=17	edge_inference_profile.csv
EO-001	Earth observation	PASS	tiles=25	scene_metadata.json
EO-002	Earth observation	PASS	spectral index statistics present	spectral_index_statistics.csv
EO-003	Earth observation	PASS	F1=0.916; IoU=0.845	model_evaluation.csv
EO-004	Earth observation	PASS	EO validation artifacts present	earth_observation_dashboard.html
TMP-001	Temporal Earth observation	PASS	shift=(-3,4); RMSE=0.1015->0.0973	registration_metrics.csv
TMP-002	Temporal Earth observation	PASS	F1=0.992; IoU=0.984	temporal_model_evaluation.csv
TMP-003	Temporal Earth observation	PASS	new flood=26.35 ha	flood_progression.csv
TMP-004	Temporal Earth observation	PASS	temporal fusion artifacts present	temporal_fusion_dashboard.html
REP-001	Reporting	PASS	42 registered artifacts present	output_manifest.json
DEV-001	Development	PASS	developer workflows present	.github/workflows/ci.yml

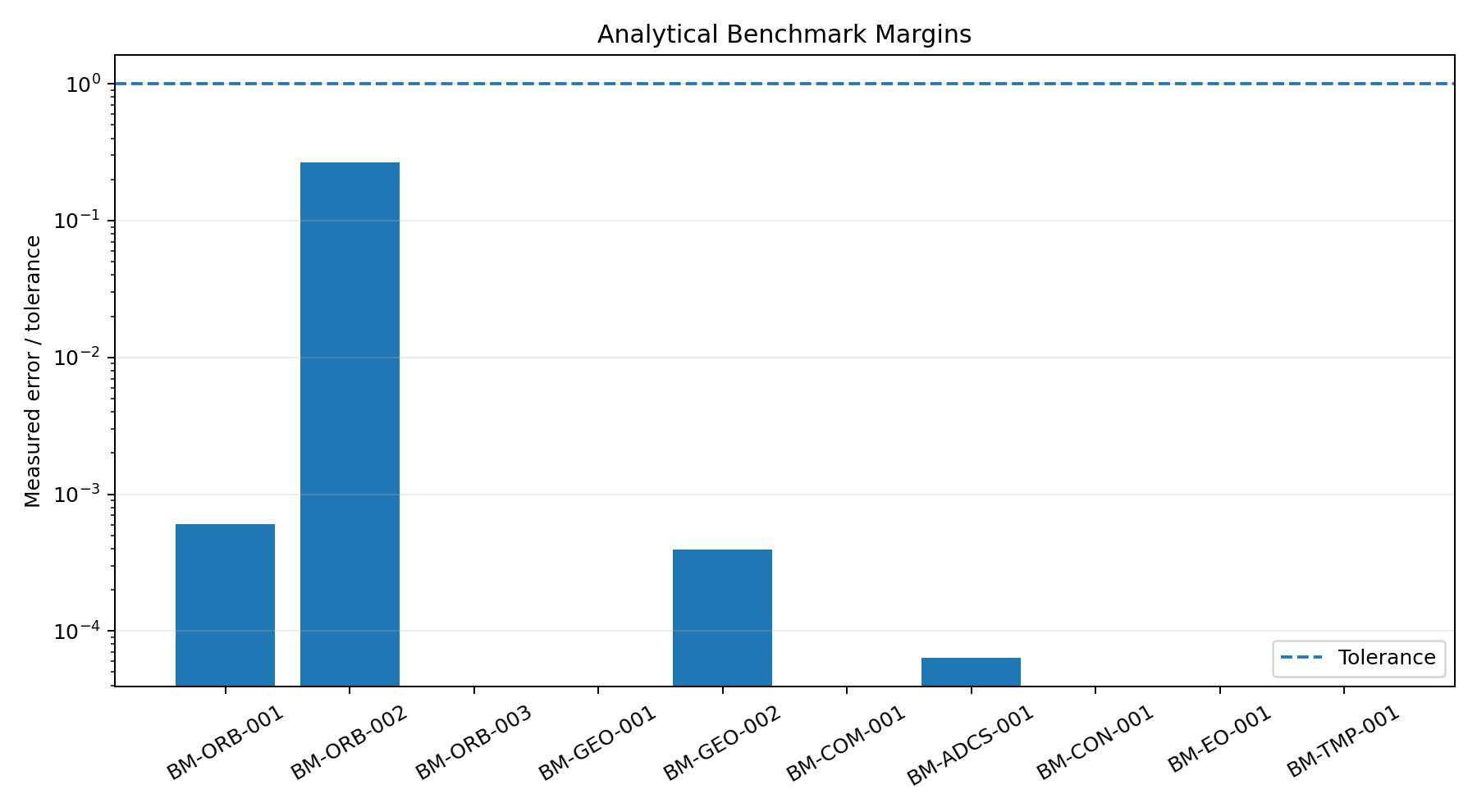

Analytical benchmarks

ID	Domain	Status	Measured error	Tolerance	Units
BM-ORB-001	Orbit	PASS	6.051888365302561e-06	0.01	km position closure error
BM-ORB-002	Orbit	PASS	2.6494951052365863e-11	1e-10	relative error
BM-ORB-003	Orbit	PASS	0.0	1e-08	km position closure error
BM-GEO-001	Ground geometry	PASS	0.0	1e-09	km vector error
BM-GEO-002	Ground geometry	PASS	3.9186209248144715e-13	1e-09	km vector error
BM-COM-001	Communications	PASS	0.0	1e-10	dB absolute error
BM-ADCS-001	ADCS	PASS	6.359601310784502e-17	1e-12	rad vector error
BM-CON-001	Constellation	PASS	0.0	0.5	boolean error
BM-EO-001	Earth observation	PASS	0.0	1e-12	absolute index error
BM-TMP-001	Temporal Earth observation	PASS	0.0	1e-12	absolute pixel-value error

Scope: This verification demonstrates deterministic software behavior, internal consistency, analytical equation checks, and reproducible scenario outputs. It is not flight qualification, regulatory approval, hardware acceptance, or independent validation by a space agency.
